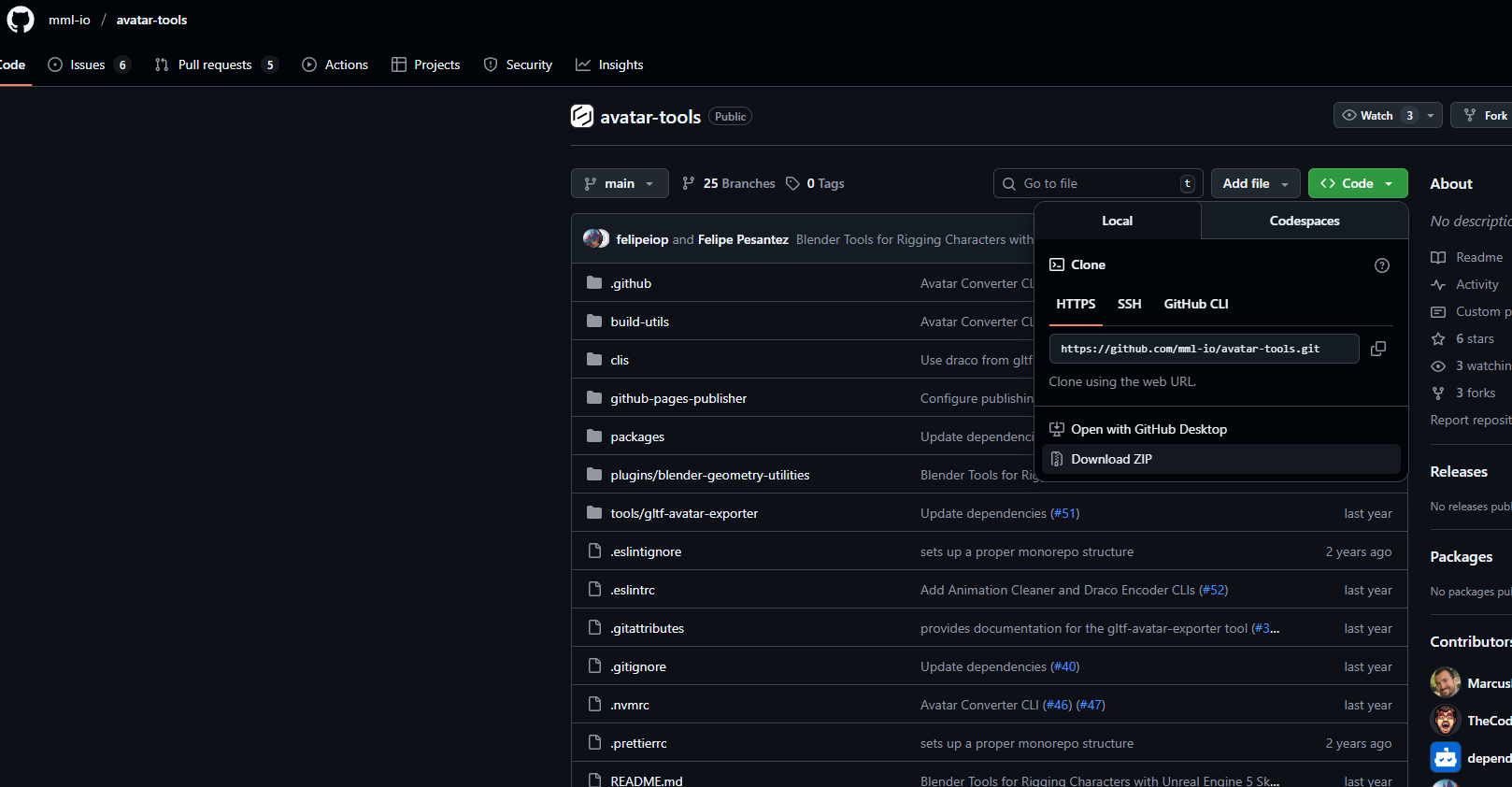

> For the complete documentation index, see [llms.txt](https://docs.otherside.xyz/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.otherside.xyz/odk-docs/characters/creating-a-custom-character/creating-a-simple-avatar-collection/pipeline-planning.md). # Pipeline Planning For this collection we have 3 Different Trait types. We can combine our separate meshes into a unified mesh for each trait type, and apply the appropriate material. We end up having 1 mesh object for each trait in our outliner. In order to export unique avatars we will want to only enable the meshes that make up a specific token. We can create a python script in Blender that reads in the JSON we created earlier and enable and disable visibility to export specific token glbs. The easiest way to do this would be to enforce a naming convention when creating meshes in the outliner something like: `{trait_type}_{trait_name}` i.e. `head_smiley_face` So the general steps would be: * Read in collection metadata * Loop through each token * hide all meshes * enable meshes from token metadata * export GLB from Blender. * run the exported GLB through the Avatar Tools CLI ### Installing Avatar Tools CLI * Download the standalone Binary for node.js v20.11.1 * Windows * Mac * Extract the .zip and place it in a folder relative to your blender file * Change the folder name from `node-v20.*` to `node_bin` * Download the `.zip` from
* open up a terminal and change the directory to the folder you just extracted i.e. `cd /path/to/avatar-tools-main` * add `node_bin` to `PATH` * Windows `set PATH=..\node_bin;%PATH%` * Mac/Linux `export PATH=../node_bin;$PATH` * run `npm install` * run `npm run build --workspace packages --workspace clis --workspace tools` Below is a very basic script that can be run within Blender to export all avatars for a collection. There is plenty of room for improvement to fit specific needs and workflows but this should give a foundational look at how to create a simple process for generating all unique avatars. ```python import os import sys import subprocess import json from pathlib import Path import bpy # set these folders/files relative to this blender file WORKING_DIRECTORY = Path(bpy.data.filepath).parent COLLECTION_METADATA = Path(WORKING_DIRECTORY, "boxie_metadata.json").as_posix() OUTPUT_DIRECTORY = Path(WORKING_DIRECTORY, "glb_export").as_posix() def get_node_binary_dir(): return Path(WORKING_DIRECTORY, "node_bin").as_posix() def get_avatar_tool_dir(): return Path(WORKING_DIRECTORY, "avatar-tools-main").as_posix() def tokenize_trait_names(token_data): trait_names = [] for trait in token_data.get("attributes", []): trait_type = trait["trait_type"] trait_name = trait["value"].replace(" ", "_") tokenized_name = f"{trait_type}_{trait_name}" trait_names.append(tokenized_name) return trait_names def solo_meshes_by_names(mesh_names): for obj in bpy.data.objects: if obj.type != "MESH": continue if obj.name in mesh_names: obj.hide_viewport = False else: obj.hide_viewport = True def export_glb(output_path): output_name = Path(output_path).stem output_dir = Path(output_path).parent temp_output_path = Path(output_dir, output_name+"_tmp").with_suffix(".glb").as_posix() bpy.ops.export_scene.gltf( filepath=temp_output_path, export_format="GLB", export_skins=True, export_current_frame=True, export_animations=False, export_normals=True, export_tangents=True, export_image_format="AUTO", export_jpeg_quality=100, use_visible=True, # export_draco_mesh_compression_enable=True, ) if Path(output_path).exists(): Path(output_path).unlink() conform_glb(temp_output_path, output_path) Path(temp_output_path).unlink() def conform_glb(input_path, output_path, skip_transparent_check=True): node_bin = get_node_binary_dir() env = os.environ.copy() env["PATH"] = f"{node_bin}{os.pathsep}{env['PATH']}" if sys.platform == "win32": args = ["npm.cmd"] else: args = ["npm"] args.append("run") args.append("convert") args.append("--") args.append("-i") args.append(input_path) args.append("-o") args.append(output_path) if skip_transparent_check: args.append("--skip-remove-transparency-from-materials") results = subprocess.run(args, cwd=get_avatar_tool_dir(), env=env) print(results) if results.returncode: output_encoded = results.stderr or results.stdout raise Exception("Error Conforming Mesh") def export_from_token_data(token_data, output_path): mesh_names = tokenize_trait_names(token_data) solo_meshes_by_names(mesh_names) export_glb(output_path) def show_all_meshes(): for obj in bpy.data.objects: if obj.type != "MESH": continue obj.hide_viewport = False def export_collection(data_path, output_directory): # load collection data from JSON if not Path(data_path).exists() or not Path(data_path).is_file(): raise Exception("Invalid Collection Data") with open(data_path, "r") as f: collection_data = json.load(f) # create directory if it does not exists output_dir_path = Path(output_directory) output_dir_path.mkdir(exist_ok=True, parents=True) for token_data in collection_data: # build glb export path output_path = Path(output_dir_path, str(token_data["id"]) + ".glb") output_path_str = output_path.as_posix() print("Exporting", token_data.get("name", token_data.get("id")), "to", output_path_str) export_from_token_data(token_data, output_path_str) show_all_meshes() if __name__ == "__main__": export_collection(COLLECTION_METADATA, OUTPUT_DIRECTORY) ``` --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://docs.otherside.xyz/odk-docs/characters/creating-a-custom-character/creating-a-simple-avatar-collection/pipeline-planning.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
