# Scannable Objects

<figure><img src="/files/ZZQ24sSdTZwtdUlF7yTW" alt=""><figcaption></figcaption></figure>

## BPC\_ScannableComponent 📸🔍

The `BPC_ScannableComponent` component extends the Selfie Cam system by allowing specific actors in the world to be "scanned" whenever a screenshot is taken. This makes it possible to tag screenshots with contextual metadata about visible objects — such as quest items, characters, or interactables.

***

### System Overview 🛠️

When the `BPC_ScannableComponent` component is attached to an actor, the Selfie Cam performs the following checks:

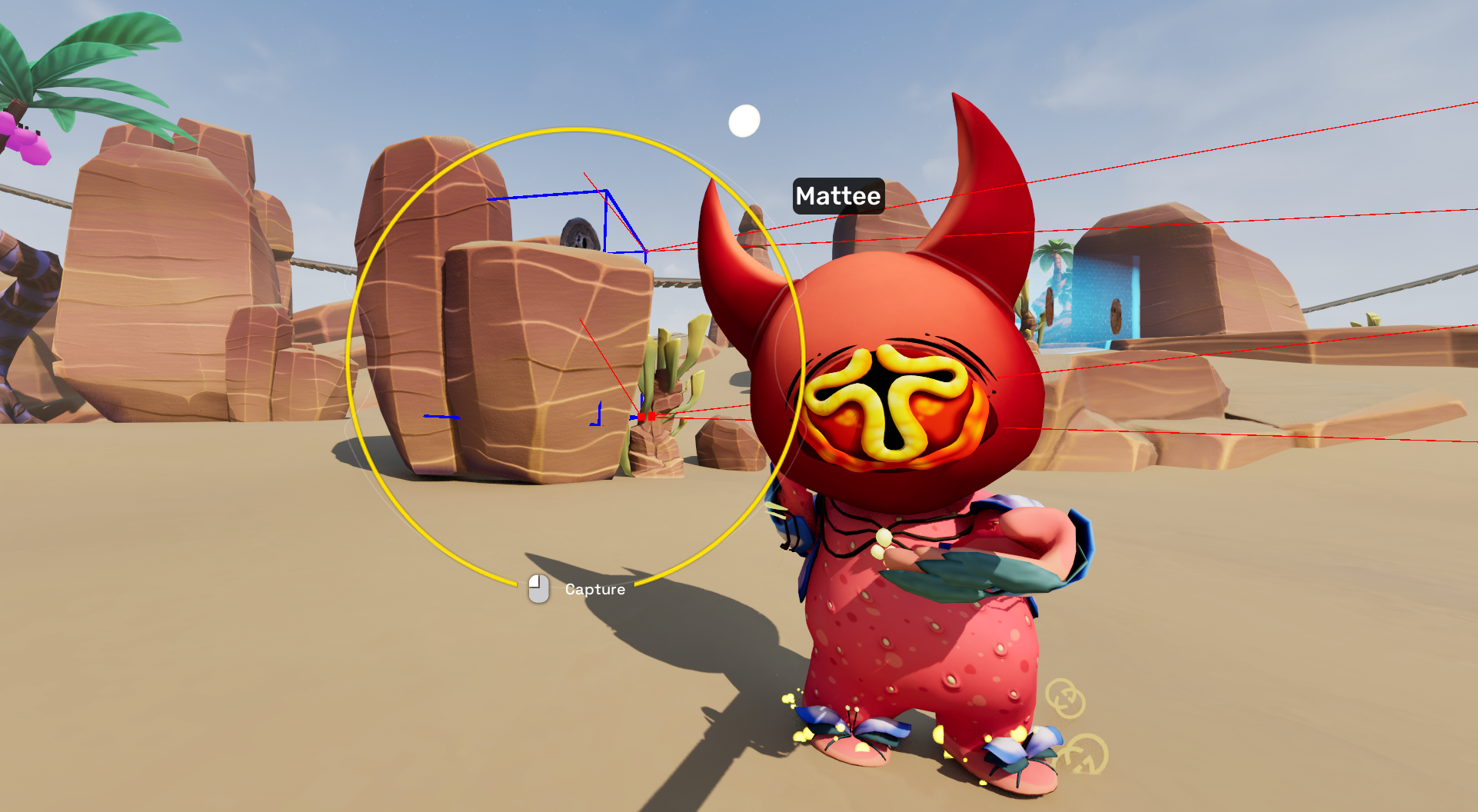

1. **Bounding Box Generation 📦**
   * The component collects the actor’s visible primitives (Static Mesh Components, Skeletal Mesh Components, etc.).
   * A **bounding box** is created around these primitives.
   * The system samples points across this bounding box (center, corners, etc.) to use for visibility testing.
2. **Camera Frustum Test 🎥**
   * The bounding points are projected into screen space.
   * If the required number of points are inside the active **camera frustum**, the actor is considered visible.
   * By default:
     * **Scan Range** = `1000 units`
     * **Required Points** = `1` (i.e. only one point needs to be inside the camera view).
3. **Optional Line Trace Validation 🎯**
   * If **Line Trace Bounding Points** is enabled, each point is validated with a line trace:
     * The trace runs from the camera position to the bounding point.
     * If the line is blocked, the point is considered occluded.
     * You can:
       * Ignore specific **actors** using a tag.
       * Ignore specific **component classes** under `Advanced > Component Classes to Ignore` (defaults include Niagara systems, Groom components, widgets, nameplates, and others).

If an actor passes all checks, it is marked as **scanned** for that screenshot.

***

### Metadata Inclusion 🗂️

Once an actor has been successfully scanned:

* Its metadata is attached to the screenshot payload.
* This data is passed to the **On Screenshot Taken** delegate on the Player Character’s `BPC_ODK_ScreenshotComponent`.
* Example flow:
  * Player presses **IA\_ODK\_KodaCam\_TakeSnapshot**.
  * Screenshot is saved locally and minted.
  * Delegate fires → returns metadata including any scannable actors in view.

***

### Customization ⚙️

The **BPC\_Scannable** component exposes several options for tailoring how actors are scanned and represented:

#### Scan Parameters

* **Scan Range** (`float`) → Maximum detection distance from the camera (default: `1000`).
* **Required Points** (`int`) → Number of bounding box points that must be inside the frustum (default: `1`).
* **Line Trace Bounding Points** (`bool`) → Enables occlusion checks for more accurate results.

#### Metadata

* **Friendly Name** (`FString`, Exposed Variable)
  * If set, this is included in the screenshot’s metadata JSON.
  * If not set, a fallback name is auto-generated from the actor’s name.
* **GetScanInfo Override** 🔧
  * Developers can subclass `BPC_ScannableComponent` and override the `GetScanInfo` function.
  * This allows returning a custom JSON object with arbitrary fields.
  * Example: rarity, quest state, or any game-specific attributes.

#### Bounds Modifiers

* **Origin Modifier** (`FVector`) → Shifts the generated bounds center.
* **Extent Modifier** (`FVector`) → Expands or shrinks the generated bounds extents.
* Useful for fine-tuning where an actor’s scannable area is relative to its meshes.

***

### Example Workflow 🚀

1. **Setup**
   * Attach `BPC_ScannableComponent` to any actor you want to be detectable in Selfie Cam mode.
2. **Configure**
   * Adjust `Scan Range` and `Required Points` to match how “strict” the scanning should be.
   * Enable **Line Trace Bounding Points** if you need occlusion accuracy (e.g. actors behind walls shouldn’t be detected).
3. **Take Screenshot**
   * Player enters Selfie Mode (`IA_ODK_KodaCam_Toggle`).
   * Camera checks for nearby scannable actors.
   * If visible, bounding box points pass frustum/trace tests → actor metadata is collected.
4. **Handle Metadata**
   * When the screenshot is taken, the `On Screenshot Taken` delegate on `BPC_ODK_ScreenshotComponent` fires.
   * This delegate returns:
     * The screenshot image data.
     * Any attached metadata from scannable actors.

***

👉 With this system in place, screenshots taken by players don’t just capture visuals — they also capture **contextual metadata** about the world, making them perfect for collectibles, quests, or social sharing features.


---
