# Morpheus Render Targets ### What is a Render Target? In Morpheus, every client sees every `AMorpheusActor` in the world, no matter how far away that `AMorpheusActor` is. If your game has 10000 players, each client will have 10000 player `AMorpheusActor`s in their scene. This means that, for high-scale types of `AMorpheusActor`, you cannot have very expensive components on that `AMorpheusActor`. For example, 10000 skeletal mesh components, or 10000 character movement components, would significantly slow down the client and server. Morpheus has a feature called **render targets** which addresses this. A render target is a way of rendering an `AMorpheusActor`, which can change dynamically. ### Available Render Targets Currently, a render target can be either: * Nothing. * A non-`AMorpheusActor` actor of a given class. * A member of an animated crowd. An `AMorpheusActor` can have only one render target active at any given point, and you can configure automatic handling of which render target to apply, when. By default, an `AMorpheusActor` will never load any render targets. ### Setting up Render Targets In your `AMorpheusActor` derived Blueprint, you will find the `MorpheusRenderTargetComponent`

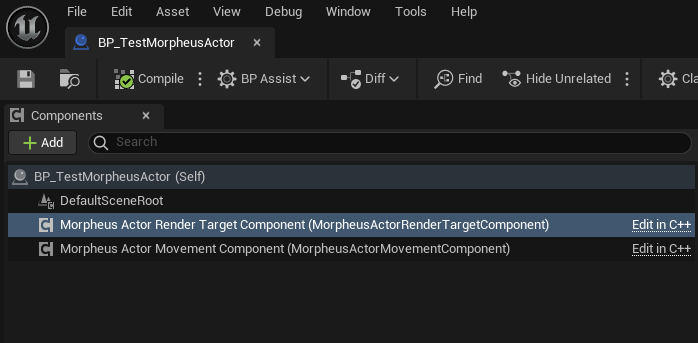

MorpheusRenderTargetComponent in a MorpheusActor Blueprint

In the details panel of the component you can control its render targets:\\ #### **Server Render Target** This is the render target always applied on the server. Although the server doesn't render anything, it can sometimes be convenient to have a server-side actor associated with an `AMorpheusActor`. #### Authoritative Client Render Target This is the render target which is always applied on the client which has authority over this `AMorpheusActor`. *Actors with authoritative render targets will not have their LOD switched and calculated.* #### LOD Group Id In order for an actor to be rendered, it must be assigned to a `FMorpheusLODGroup` By default, we have the `PlayerClient` LOD group ID but you can add as many as you want from the project settings when clicking `Create LOD Group`
If the LOD group ID is not assigned we fallback to the `DefaultLODGroup` in the following setting. #### Default LOD Group Each LOD Group has a list of `FMorpheusLODGroupLevel` and `FMorpheusLODGroupBucket`. * A LOD Group Level defines the `NumEntities` that can be rendered in that level. * A LOD Group Bucket is used to prioritize some actors over others within the same LOD Group. It defines a `MaxDistance` within which the actors belonging to that bucket will be prioritized. Each non-authoritative client will render the closest `NumEntities` entities (within the same `FMorpheusLODGroup`) starting from LOD 0. For example, an actor with the following three LOD levels: * 0: Actor render target with actor class `ACharacter`. * 1: Animated crowd render target with high quality vertex animated meshes. * 2: None and belonging to the LOD Group `CharacterLODGroup` defined with: * LOD Level 0: (NumEntities=`30`) * LOD Level 1: (NumEntities=`500`) Will render the closest 30 entities as the `ACharacter` class, the next 500 closest entities as Animated Crowd memers, the remaining actors as imposters, and have no render targets. The render targets will be automatically swapped when the `AMorpheusActor`s move closer or further away. #### LOD Group Buckets A LOD Group can define buckets, and actors can register to the buckets to be prioritized. This can be done from the `MorpheusRenderTargetComponent`\\ For example, using the previously described LOD Group `CharacterLODGroup` , let's say it also defines these buckets: * Bucket 0: (Name=`HighPriority`, MaxDistance=`10000`) * Bucket 1: (Name=`LowPriority`, MaxDistance=`5000`) Notice that buckets at lower indices will always have higher priority than buckets at higher indices. `UMorpheusRenderTargetManager` will prioritize the actors belonging to bucket `HighPriority` (if their distance from the camera is below 10000) over the actors in the `LowPriority` group: * Actor 0: Belonging to `HighPriority` bucket and with Distance=7000 * Actor 1: Belonging to `LowPriority` bucket and with Distance=1000 * Actor 2: Doesn't have a bucket assigned (i.e `None` ) and with Distance=400 In the above situation, the actors will occupy the available slots (`NumEntities`) in the `CharacterLodGroup` in the same order they were listed respecting the bucketing order.\ \ So actors belonging to the `HighPriority` bucket will get assigned first followed by `LowPriority` bucket then the unassigned bucket actors. ### Setting the Render Targets during runtime If you want to update your Render Target setup during runtime, there are some blueprint functions that can be used to achieve this: {% @blueprintue-embed/embed url="" %} These options should be used sparingly as they may cause multiple render target reloads depending on the new `NumEntities` capacity - for example, when calling `SetClientLODLevels` it will attempt to reload the render target to a sensible default option based on the previous LOD level index. {% hint style="info" %} In release v40 onwards, we have some additional helpers, which we recommend using instead of setting the Client LOD levels directly: {% endhint %} ### Checking which Render Target is currently in use In order to identify which render target is currently in use you can use the following nodes in Blueprints:\\ {% @blueprintue-embed/embed url="" %} If an `AMorpheusActor` currently has an actor render target enabled, `MorpheusActorRenderTargetComponent->CurrentActor` is set to the actor. `MorpheusActorRenderTargetComponent->CurrentActor` is `nullptr` otherwise. If an `AMorpheusActor` currently has an animated crowd render target enabled, `MorpheusActorRenderTargetComponent->CurrentAnimatedCrowd` is set to the animated crowd actor. `MorpheusActorRenderTargetComponent->CurrentAnimatedCrowd` is `nullptr` otherwise. `MorpheusActorRenderTargetComponent->GetClientLODIndex()` can be used to determine which client LOD level index is currently active, if any. ### Render Target State The `MorpheusActorRenderTargetComponent` has a generic state that is stored locally (NOT replicated). This state will be known as the `Render Target State` and can be used to maintain the rendering state of the `MorpheusActor` The `Render Target State` is of a type called `FMorpheusPackedStruct` which is a special type that can store any type of a struct. Before using the `Render Target State` you will need to create or specify the struct that will represent your rendering state. Here is a BP example that shows it in action: {% @blueprintue-embed/embed url="" %} You can also respond to updates that occur to your `Render Target State` via the delegate `OnRenderTargetStateUpdated` which will fire as a result of any of these triggers: * An update to the `Render Target State` * i.e. a call to `SetPackedRenderTargetState` . * A render target transition * e.g. Actor to Animated Crowd or vise versa. * A render target is first loaded * e.g. as a result of a newly spawned `MorpheusActor`. Here is an example of how to use this event in Blueprints: {% @blueprintue-embed/embed url="" %} {% hint style="info" %} It's recommended to use the delegate `OnRenderTargetStateUpdated` delegate for updating your render target compared to the `Additional Render Target Events` below as it's more inclusive. {% endhint %} ### Additional Render Target Events The `MorpheusActor` provides some events to listen for when its render target is updated. * `OnRenderTargetUpdated` : This is triggered when the render target is updated (e.g. switching from Actor to AnimatedCrowd) * `OnRenderTargetSpawnedEvent` : Triggered when the Render Target has been switched to an Actor that has just finished spawning. --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://docs.otherside.xyz/platform-documentation/creation/unreal-development/getting-started/networking/morpheus-render-targets.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
