# Custom Connection Modes

We always want to set `Edit > Editor Preferences > Level Editor > Play > Play Net Mode` to be `Play Standalone`.

### 1. Running PIE server and client locally from Editor. <a href="#connectingclientstodifferentdeploymenttypes-1.runningpieserverandclientlocallyfromeditor" id="connectingclientstodifferentdeploymenttypes-1.runningpieserverandclientlocallyfromeditor"></a>

1. In `Edit > Editor Preferences > General > Morpheus`, ensure that:
   * `EditorConnectionStrategy` is set to `Local`.
2. In `Edit > Editor Preferences > Level Editor > Play`, ensure that:
   * `Launch Separate Server` is set to `true`.
   * `Run Under One Process` is set to `true`.
3. Then you can hit `Play` with the option `New Editor Window (PIE)` selected.

### 1.1. Testing late joining in PIE

1. When running a PIE server and client, you can enable "late joining" by ticking `Edit > Editor Preferences > General > Experimental > Allow late joining`

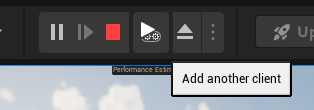

2. Once this is ticked, after hitting play, you can add extra clients after the session has already started by clicking the button in the toolbar

   <figure><img src="/files/2rgB3UIKMRK6U4WYxwWP" alt=""><figcaption></figcaption></figure>

### 1.2. Testing disconnection and reconnection <a href="#connectingclientstodifferentdeploymenttypes-2.runningstandaloneserverandclientfromeditorlocally" id="connectingclientstodifferentdeploymenttypes-2.runningstandaloneserverandclientfromeditorlocally"></a>

We have modified the native Unreal `Disconnect` and `Reconnect` console commands to be compatible with the Morpheus Platform:

* `Disconnect` - will cause the local client to disconnect from the server. They will remain in the current world, but will be in the "disconnected" state.
* `Reconnect` - functionally equivalent to the `RestartLevel` console command. The client will attempt to reconnect to the server upon restarting the level.

### 2. Running Standalone server and client from Editor locally. <a href="#connectingclientstodifferentdeploymenttypes-2.runningstandaloneserverandclientfromeditorlocally" id="connectingclientstodifferentdeploymenttypes-2.runningstandaloneserverandclientfromeditorlocally"></a>

1. In `Edit > Editor Preferences > Level Editor > Play`, ensure that:
   * `Multiplayer Options > Launch Separate Server` is set to `true`.
   * `Multiplayer Options > Run Under One Process` is set to `false`.
   * `Play in Standalone Game > Additional Launch Parameters` contains `-LocalDeployment`.
   * `Server > Additional Server Launch Parameters` contains `-LocalDeployment`.
2. Then you can hit `Play` with the option `Standalone Game`.

Notice that we don't care about the `EditorConnectionStrategy` in this case as it will always be the default value and will be ignored as we are running both the client and the server in other processes outside the Editor.

### 3. Connecting with a PIE Client to a Local External Server that's already running. <a href="#connectingclientstodifferentdeploymenttypes-3.connectingwithapieclienttoalocalexternalserverthatsalr" id="connectingclientstodifferentdeploymenttypes-3.connectingwithapieclienttoalocalexternalserverthatsalr"></a>

1. In `Edit > Editor Preferences > Morpheus Platform > Morpheus`, ensure that `EditorConnectionStrategy` is set to `LocalExternalServer`.
2. In `Edit > Editor Preferences > Level Editor > Play`, ensure that:
   * `Launch Separate Server` is set to `false`.
3. Then you can hit `Play` with the option `New Editor Window (PIE)`.

Notice that this will only work if the Server was started with the Default Ports (i.e started with `-LocalDeployment`).

### 4. Connecting with a PIE Client to a Cloud Server. <a href="#connectingclientstodifferentdeploymenttypes-4.connectingwithapieclienttoacloudserver" id="connectingclientstodifferentdeploymenttypes-4.connectingwithapieclienttoacloudserver"></a>

1. In `Edit > Editor Preferences > Morpheus Platform > Morpheus`, ensure that `EditorConnectionStrategy` is set to `Cloud`.
2. In `Edit > Editor Preferences > Morpheus Platform > Sign In Settings` ensure that `Per Client Sign In Settings` has a single element of Type `Single Sign On`. If not, add one.
3. In `Edit > Editor Preferences > Level Editor > Play`, ensure that:
   * `Launch Separate Server` is set to `false`.
4. Ensure that you pass the `-DeploymentName <YourDeploymentName>` argument to the **Editor** when launching it (see `AMorpheusConnection::GetDeploymentName()`):
5. Then you can hit `Play` with the option `New Editor Window (PIE)`.

### 5. Connecting with a Standalone Client to a PIE Server. <a href="#connectingclientstodifferentdeploymenttypes-5.connectingwithastandaloneclienttoapieserver" id="connectingclientstodifferentdeploymenttypes-5.connectingwithastandaloneclienttoapieserver"></a>

1. In `Edit > Editor Preferences > Morpheus Platform > Morpheus`, ensure that:
   * `Editor Connection Strategy` is set to `Local`.
   * `Should Server Use Default Ports` is set to `true`.
2. In `Edit > Editor Preferences > Level Editor > Play`, ensure that:
   * `Launch Separate Server` is set to `true`.
   * `Run Under One Process` is set to `true`.
3. Then you can hit `Play` with the option `New Editor Window (PIE)`.
4. You could also launch more standalone client with `-LocalDeployment` CLI flag.

### 6. Connecting with a Standalone Client to a Local External Server that's already running. <a href="#connectingclientstodifferentdeploymenttypes-6.connectingwithastandaloneclienttoalocalexternalservert" id="connectingclientstodifferentdeploymenttypes-6.connectingwithastandaloneclienttoalocalexternalservert"></a>

1. In `Edit > Editor Preferences > Level Editor > Play`, ensure that:
   * `Launch Separate Server` is set to `false`.
   * `Play in Standalone Game > Additional Launch Parameters` contains `-LocalDeployment`.
2. Then you can hit `Play` with the option `Standalone Game`.

Notice that this will only work if the Server is using the default Ports (i.e started with `-LocalDeployment`).

### 7. Connecting with a Standalone Client to a Cloud Server. <a href="#connectingclientstodifferentdeploymenttypes-7.connectingwithastandaloneclienttoacloudserver" id="connectingclientstodifferentdeploymenttypes-7.connectingwithastandaloneclienttoacloudserver"></a>

1. In `Edit > Editor Preferences > Level Editor > Play`, ensure that:
   * `Launch Separate Server` is set to `false`.
   * `Play in Standalone Game > Additional Launch Parameters` contains `-DeploymentName <YourDeploymentName>`.
2. In `Edit > Editor Preferences > Morpheus Platform > Sign In Settings` ensure that `Per Client Sign In Settings` has a single element of Type `Single Sign On`. If not, add one.
3. Then you can hit `Play` with the option `Standalone Game`.

### 8. Running a local deployment without the editor. <a href="#connectingclientstodifferentdeploymenttypes-8.runningalocaldeploymentwithouttheeditor" id="connectingclientstodifferentdeploymenttypes-8.runningalocaldeploymentwithouttheeditor"></a>

1. Ensure that the flag `-LocalDeployment` is passed to both Clients and Server executables which tells them to use the default port numbers instead of random ports.

### Overriding default ports <a href="#connectingclientstodifferentdeploymenttypes-overridingdefaultports" id="connectingclientstodifferentdeploymenttypes-overridingdefaultports"></a>

1. If you want your server to use specific ports, you'd need to pass these CLI args:

* `-morpheusLocalDeploymentRedisPort <YourRedisPort>`.
* `-morpheusLocalDeploymentProxyPort <YourProxyPort>`.

1. If you want your standalone client to use specific ports, you'd need to pass these CLI args:

* `-directRedisPort <ServerRedisPort>`
* `-proxyPort <ServerProxyPort>`

### If your connection is still failing: <a href="#connectingclientstodifferentdeploymenttypes-ifyourconnectionisstillfailing" id="connectingclientstodifferentdeploymenttypes-ifyourconnectionisstillfailing"></a>

* Make sure that the ports being used by the Client are the same ones that the server is using.
  * This can be done by searching through both the Client and Server logs.
* By default, all Clients/Servers started from the editor will be using the default ports unless overridden.


---
